H3C简易聚合配置

创建二层 LACP 动态聚合口
[Leaf-01] interface Bridge-Aggregation 1
[Leaf-01-Bridge-Aggregation1] link-aggregation mode dynamic
[Leaf-01-Bridge-Aggregation1] quit
将跨设备的物理口加入聚合组
[Leaf-01] interface range GigabitEthernet 1/0/2 GigabitEthernet 2/0/2
[Leaf-01-if-range] port link-aggregation group 1
[Leaf-01-if-range] quit
统一在聚合接口下配置 Trunk 并放行 VLAN
[Leaf-01] interface Bridge-Aggregation 1
[Leaf-01-Bridge-Aggregation1] port link-type trunk
[Leaf-01-Bridge-Aggregation1] undo port trunk permit vlan 1
[Leaf-01-Bridge-Aggregation1] port trunk permit vlan 10
[Leaf-01-Bridge-Aggregation1] quit
创建对端的二层 LACP 动态聚合口
[Core-01] interface Bridge-Aggregation 1
[Core-01-Bridge-Aggregation1] link-aggregation mode dynamic
[Core-01-Bridge-Aggregation1] quit
将核心物理口加入聚合组
[Core-01] interface range GigabitEthernet 1/0/2 GigabitEthernet 1/0/3
[Core-01-if-range] port link-aggregation group 1
[Core-01-if-range] quit
配置 Trunk 与 VLAN 放行
[Core-01] interface Bridge-Aggregation 1
[Core-01-Bridge-Aggregation1] port link-type trunk
[Core-01-Bridge-Aggregation1] undo port trunk permit vlan 1
[Core-01-Bridge-Aggregation1] port trunk permit vlan 10
[Core-01-Bridge-Aggregation1] quit

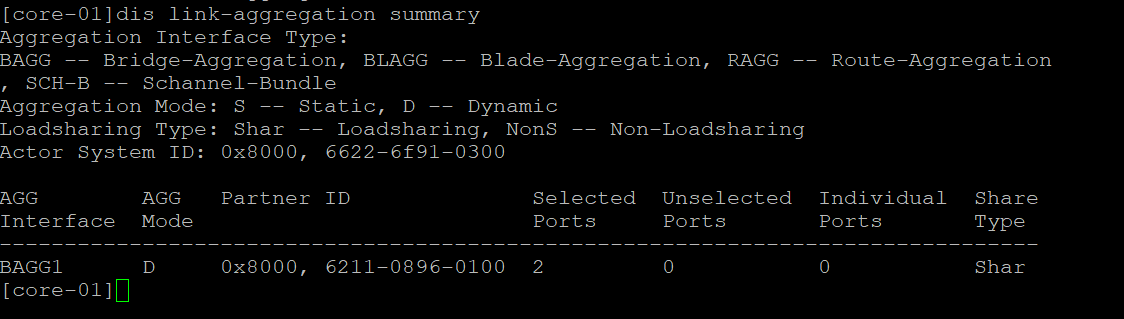

4.验证
[Core-01-Bridge-Aggregation1] display link-aggregation summary
